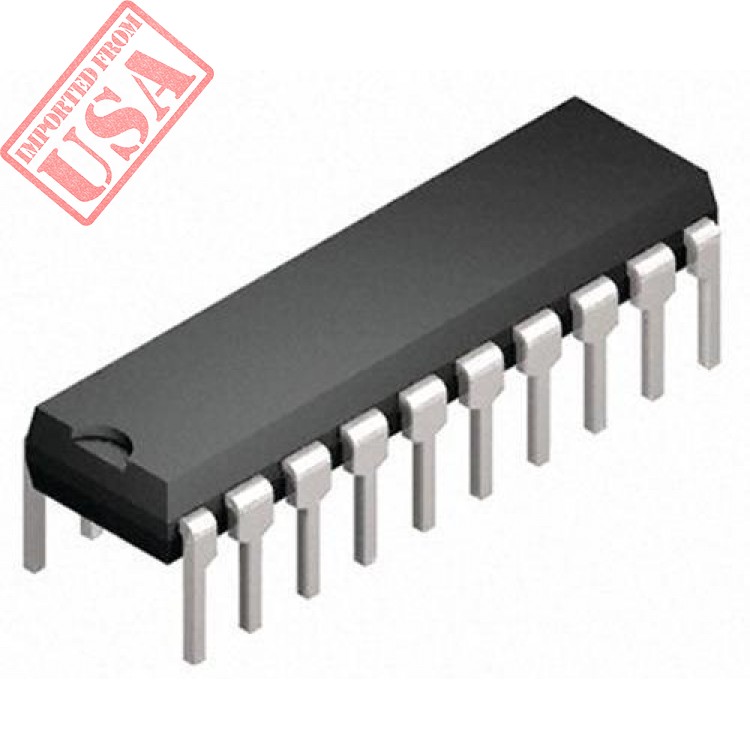

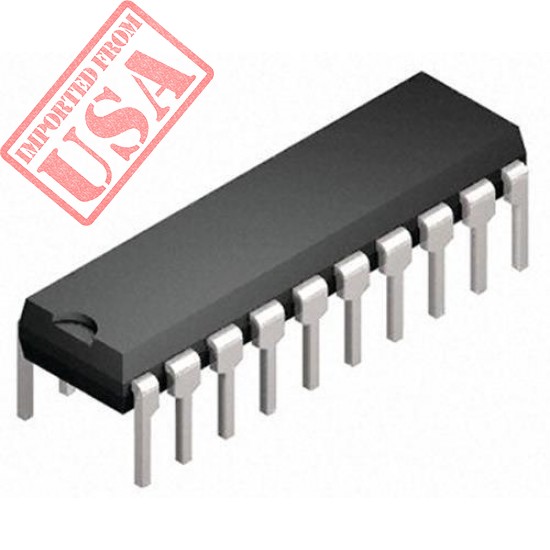

1 x STMicro M74HC240B1R Buffers & Line Drivers Octal Bus Buffer 2V to 6V, DIP-20

You will get 1 IC

Specifications

Manufacturer: STMicroelectronics
Product Category: Buffers & Line Drivers
Number of Input Lines: 8 Input
Number of Output Lines: 3 Output
Polarity: Inverting
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: DIP-20
Packaging: Tube
Function: Buffer/Line Driver
Height: 3.93 - 0.25 mm (Max) (Min)
Length: 25.4 mm (Max)
Output Type: 3-State
Quiescent Current: 4 uA
Series: M74HC240
Technology: CMOS
Width: 7.1 mm (Max)
Brand: STMicroelectronics
Logic Family: HC
Logic Type: CMOS
Number of Channels: 8
Supply Current - Max: 4 uA
High Level Output Current: - 7.8 mA
Input Signal Type: Single-Ended
Low Level Output Current: 7.8 mA
Operating Supply Voltage: 2 V to 6 V
Pd - Power Dissipation: 500 mW (1/2 W)
Product Type: Buffers & Line Drivers
Propagation Delay Time: 130 ns at 30 V, 26 ns at 4.5 V, 22 ns at 6 V
Subcategory: Logic ICs
